The F1 comes with a single build platform size.
Ultra-Compact All-in-One Design
Integrated printing and curing in an exceptionally compact footprint for true chairside flexibility.
Portable Power Support
Breaks traditional space limitations, enabling a more mobile and flexible digital workflow.
Long-term Restoration Capability
Supports crowns, 3 unit-bridges, veneers, and inlays with permanent restorative applications.
Lower Learning Curve
Cleaner, simpler, and more reliable material handling with reduced learning curve and maintenance risk.
Adaptive Pneumatic Stereolithography Technology（APS）
Optimized pressure control improves stability, precision, and compatibility with high-viscosity ceramic-filled resins.
Seamless Digital Workflow
Connects scanning, design, and print into one efficient digital dental ecosystem.
.jpg?width=2000&name=%E6%97%A0%E9%A2%98%E4%BC%9A%E8%AF%9D1426_(2).jpg)

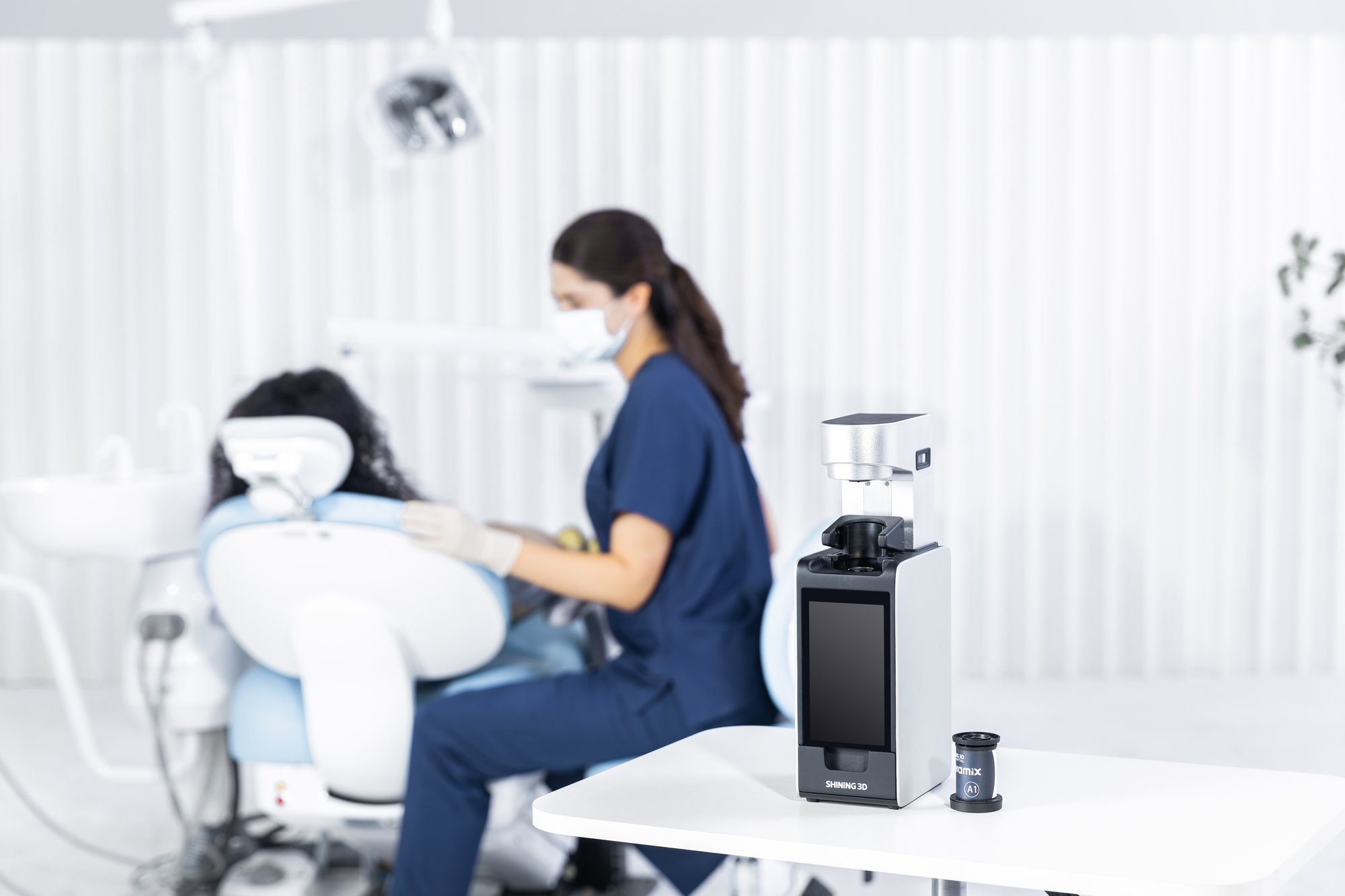

True Chairside Printing. Reimagined.

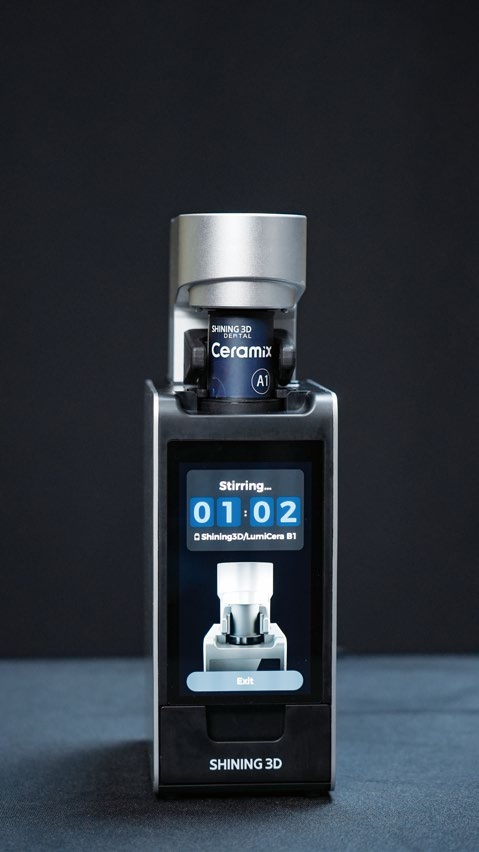

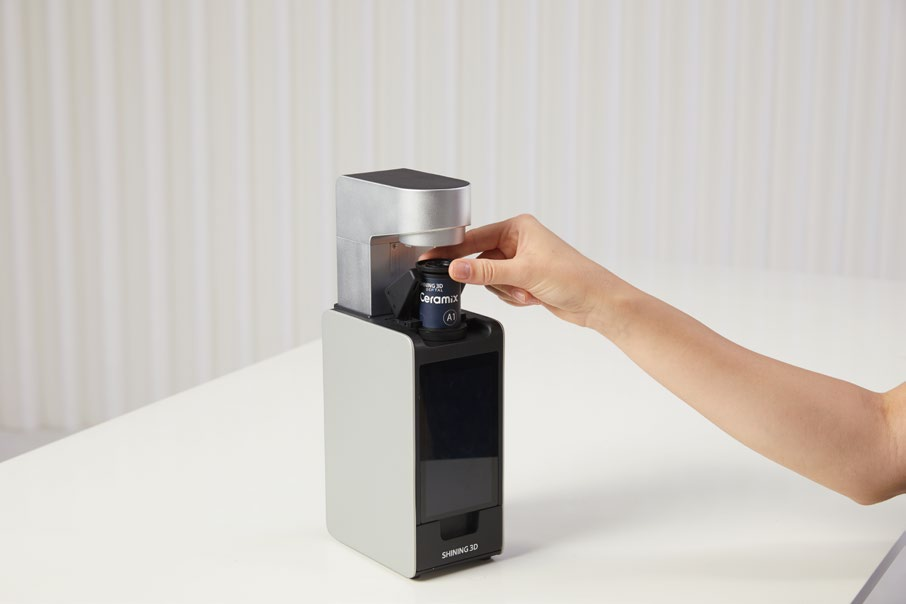

The Nano Capsule Printer is engineered to define the future of true chairside dentistry. By leveraging patented APS (Adaptive Pneumatic Stereolithography) technology with a revolutionary capsule-based material system, it delivers high-quality final restorations instantly at chairside. Enable clinicians to experience a seamless, intuitive workflow that reduces complexity, boosts efficiency, and enhances patient satisfaction.

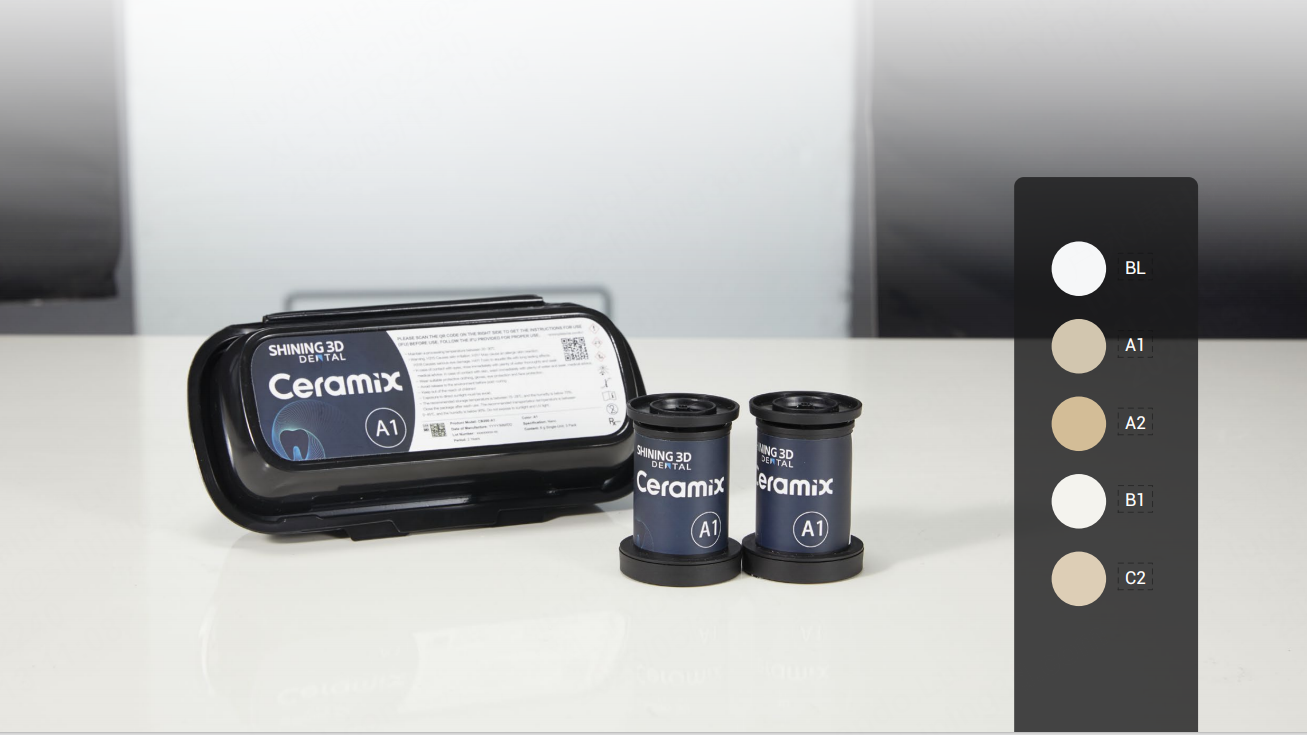

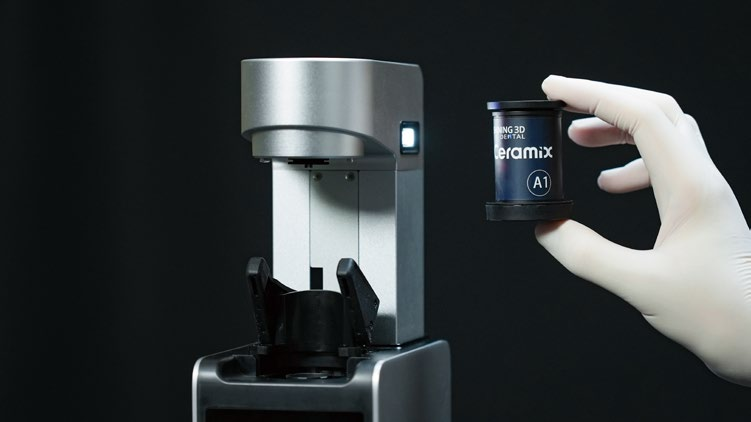

CeraMix Nano Capsule: Permanent Excellence
Engineered with a ceramic loading exceeding 55%, these permanent crown capsules deliver excellent mechanical properties, including high strength and flexural resistance, ensuring long-term durability and stable clinical outcomes, while offering reliable biocompatibility for safe intraoral use.
Outstanding Aesthetics
VITA shades including BL, A1, A2, B1, C2.
Biocompatibility
FDA Class II 510(k) cleared for safe use with proven biocompatibility.
Long-Term Durability
High filler material supports long-term final restoration use.

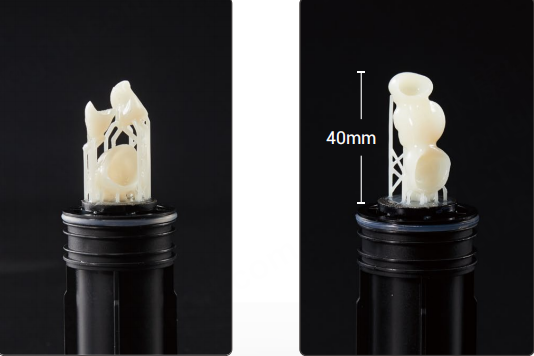

Optimized Volume. Maximum Efficiency.
Through an intelligently generated stacked arrangement, the Nano maximizes every drop of material. With an internal chamber height of 40mm, it easily accommodates 3-unit bridges, delivering the perfect balance of high-speed efficiency and high-volume capacity.
Optimized Volume. Maximum Efficiency.
Through an intelligently generated stacked arrangement, the Nano maximizes every drop of material. With an internal chamber height of 40mm, it easily accommodates 3-unit bridges, delivering the perfect balance of high-speed efficiency and high-volume capacity.
Proprietary APS Technology
（ Adaptive Pneumatic Stereolithography ）
APS is a patented printing technology that creates a highly stabilized pneumatic printing environment through an integrated sensor system. By precisely controlling and optimizing the peeling process, the Z-axis travel distance for a single layer is only 1.5mm.
Working in close synergy with a powerful optical engine delivering up to 25 mW/cm², the system is specifically engineered for high-viscosity, ceramic-filled materials, enabling fast, stable, and highly precise printing of chairside restorations.

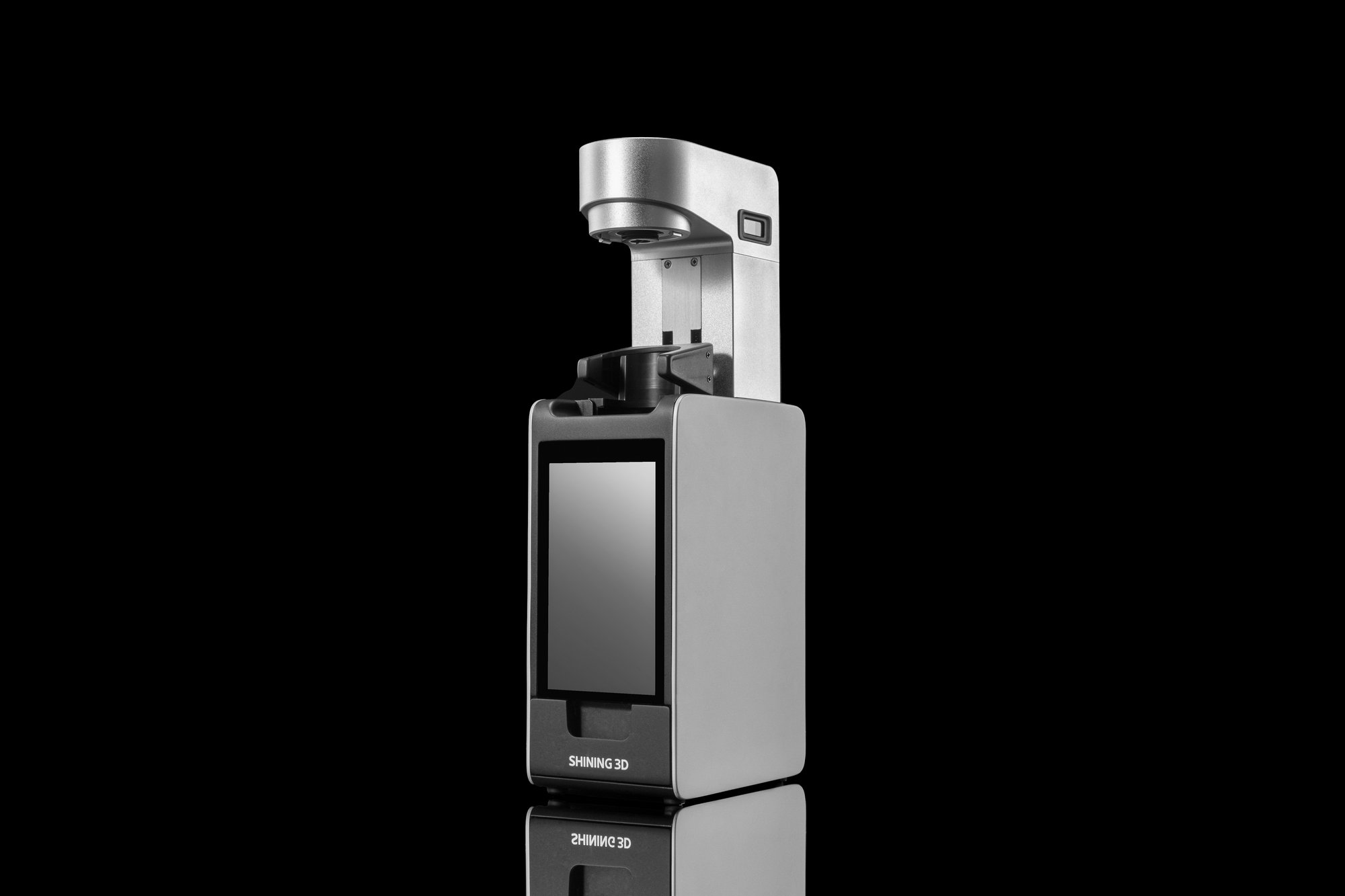

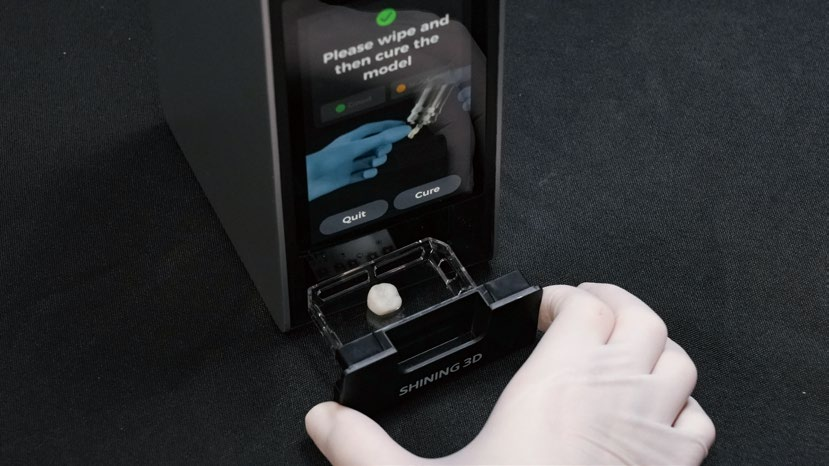

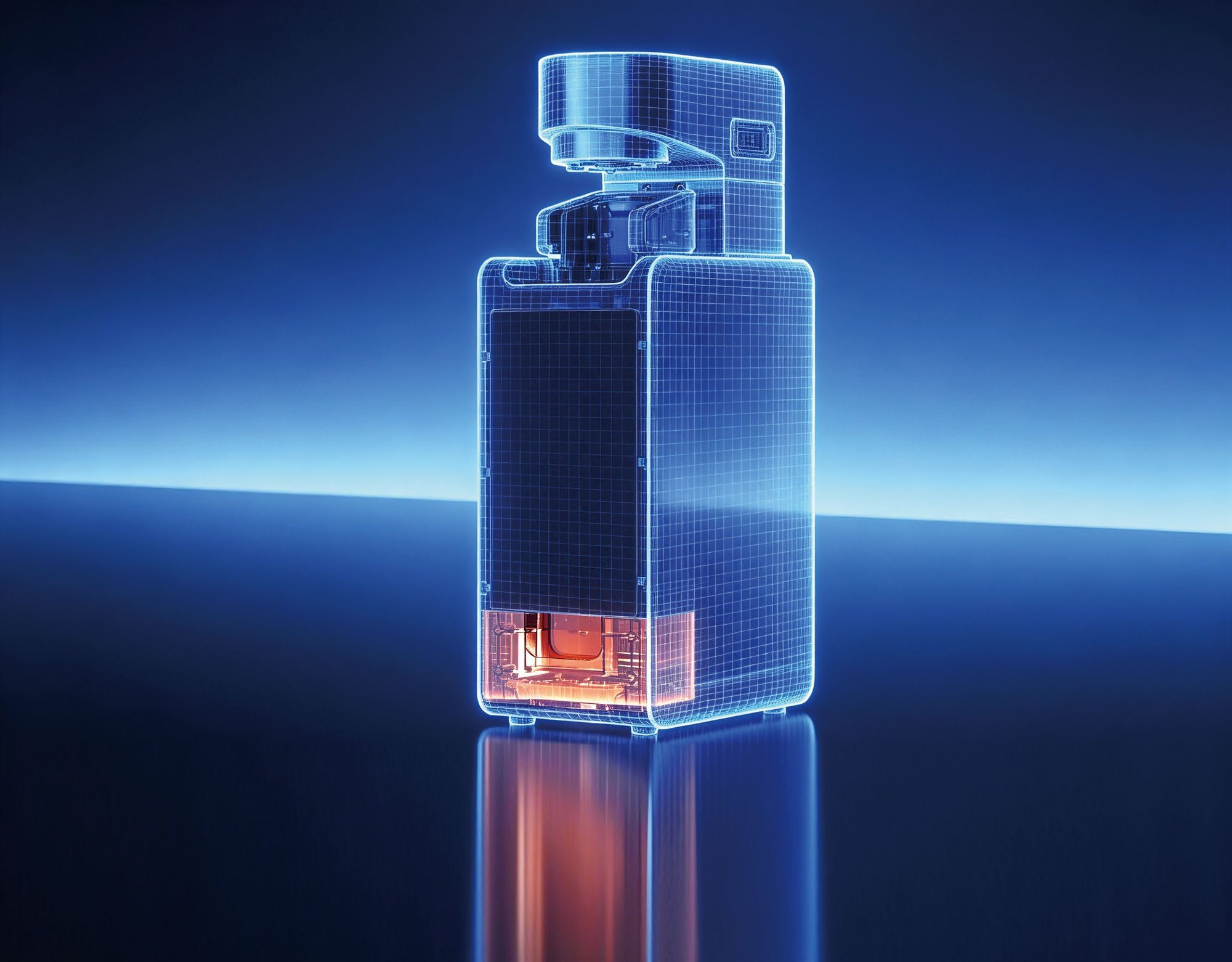

Built-in Curing Unit
Transitioning from multi-device setups to a unified 2kg system, the Nano integrates high-precision printing and a 90°C professional curing module in a single device. As one of the world’s most compact capsule printers, it expands what is possible with a space-efficient hardware design.

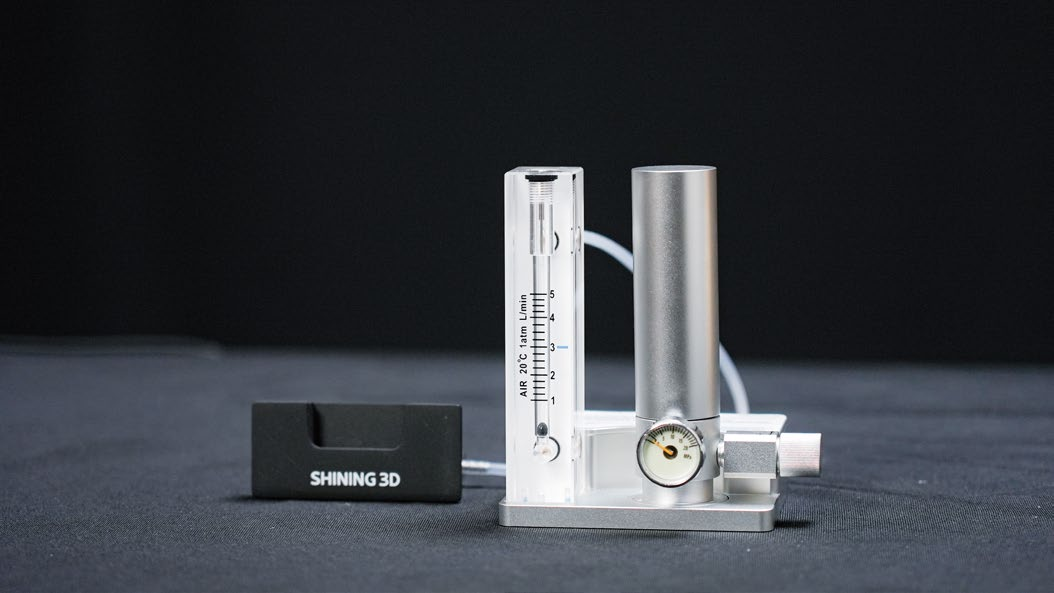

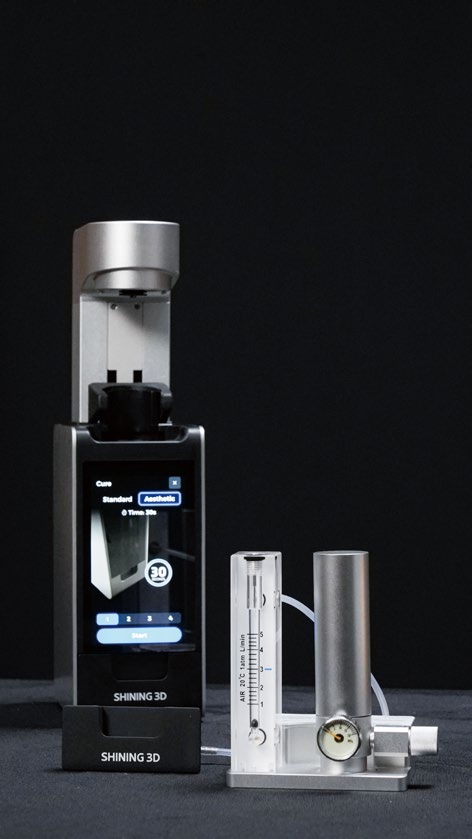

Aesthetic Curing Module
Apart from the regular built-in curing box which is compact and powerful, the optional CO�/inert gas curing aesthetic system eliminates the need for an external nitrogen tank, enabling a streamlined chairside workflow.It enables oxygen-free curing to deliver a smooth, premium surface finish, fully satisfying the aesthetic demands of final dental restorations.

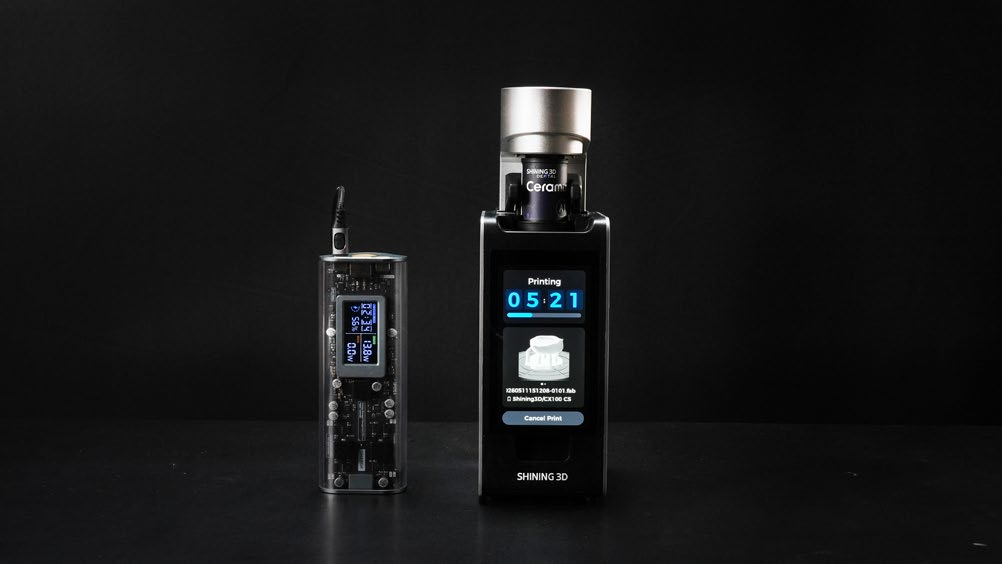

Power Bank Compatible Printing
Designed for true mobility, Ceramix-Nano supports direct printing via portable power banks. Experience "Power Anytime, Print Anywhere" as we redefine the boundaries of digital dental workflows. Note: Requires a 10,000mAh+ power bank. A 10,000mAh unit supports approximately three complete print + cure cycles.
Unprecedented Speed:
The 15-Minute Revolution
Powered by APS technology, the Nano achieves a single-crown print in just 8 minutes, with a lightning-fast layer time of only 3.1 seconds. When paired with our high-power curing, the entire production cycle is compressed into a blistering 15-minute window.This drastically boosts clinical efficiency and greatly shortens chairside waiting time for both dentists and patients.
AI-Powered Crown Design in 2 Minutes
SHINING 3D offers an AI-powered design service that generates highly detailed restorations in under 2 minutes. It balances extreme speed with precise parameter validation and professional editing tools, giving you total control over every detail. By eliminating the design bottleneck, rapid design becomes the heartbeat of seamless chairside delivery.
Cloud-Driven Printing Workflow
One-Click Printing
SHINING 3D Dental Cloud enables intelligent nesting and slicing for designed restorations, automatically optimizing layout, orientation, and slicing parameters in the cloud. With true one-click printing, it eliminates manual setup while delivering a simplified workflow and consistent, stable production-ready results.
Cloud Print Dispatch
Through the SHINING 3D Dental Cloud platform, sliced print data is automatically transferred directly to the printer without manual file transfer or data switching, enabling a seamless connection between digital and physical workflows while improving efficiency and saving valuable time.
