Aoralscan 3

Aoralscan 3

Aoralscan 3

· Brand New Design

· Fast Speed

· High Accuracy

· Powerful AI Process

· Intuitive Communication

Launch Event

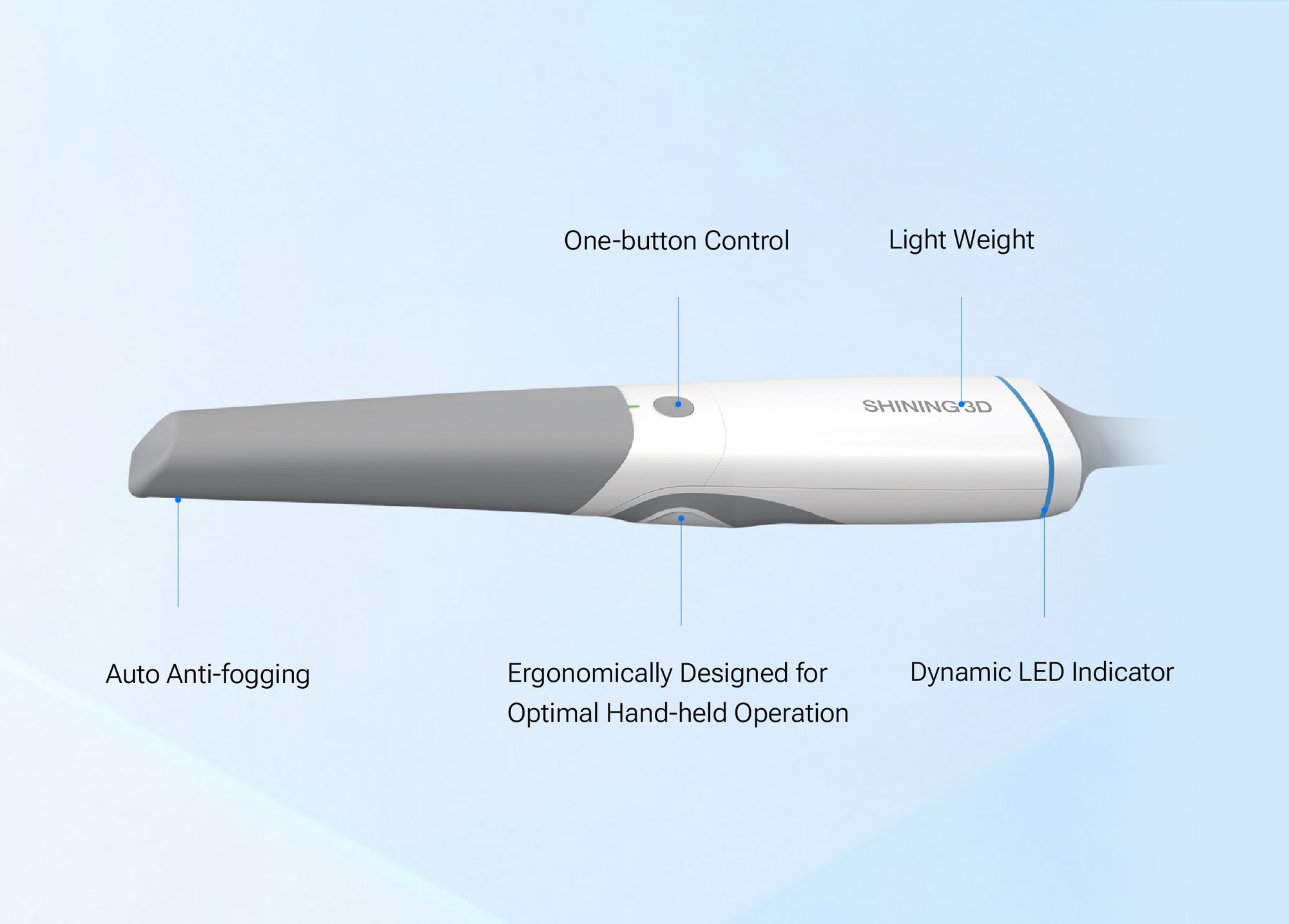

Light Weight (240g)

Auto Anti-fogging

Ergonomically Designed for Optimal Hand-held Operation

Dynamic LED Indicator

Aoralscan 3 Intraoral Scanner Unboxing Video

Aoralscan 3 Intraoral Scanner Practical Demonstration

Aoralscan 2

Aoralscan 3

58 %

Greater Scan Field Of View Than Aoralscan 2

16×12 mm

FOV (Standard Tip)

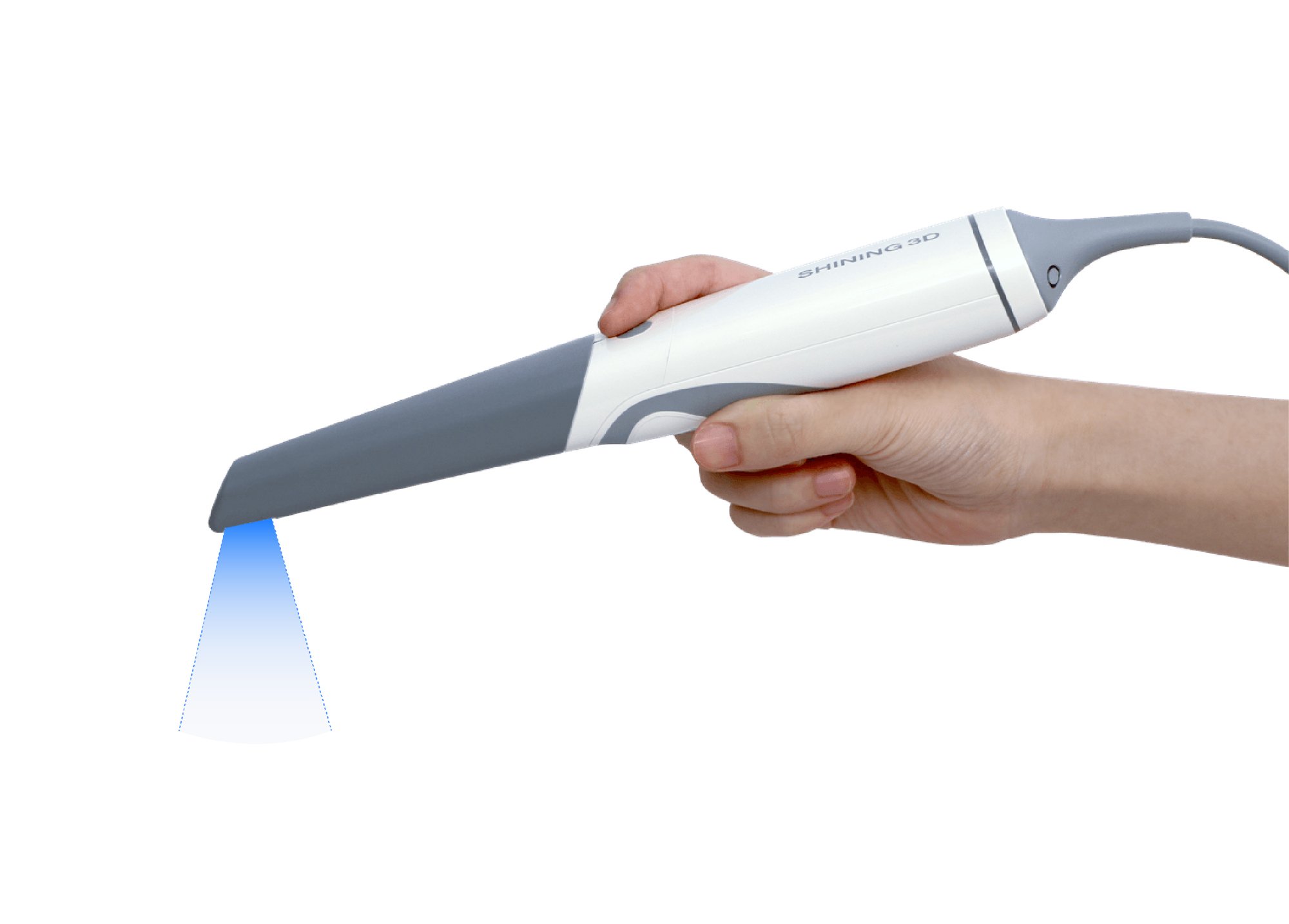

up to 22 mm

Deep Scan Depth
Aoralscan 3 is suitable for various clinical scenarios including acquiring scan bodies and periodontal scans.

2 Tip Sizes

Accommodates adults and children Anti-fogging

up to 100 times

Slimmer and 15% longer autoclavable scanner tips offer patients with more comfortable clinical experience.

Cart Option

The dedicated cart solution was designed to professionally round off the Aoralscan experience in a broad array of working scenarios.
With Aoralscan, I can do part of the preparation and see how parallel it is or if there is enough space. I can then resharpen it, rescan it and that’s the biggest advantage,such a procedure is unthinkable with classic prints.
ŠTĚPÁN VINKLER, MDDR. the Czech Republic

Motion Sensing

Less Contact, Much Safer
Dentists can scan with minimal contact with the computer, ensuring a safe and efficient scan experience.

AI Scan

Speed Up The Scan
Automatically identifies and filters out unnecessary soft tissue data during scanning resulting in a quicker and cleaner scan process.


More Accurate
Thanks to optimized algorithms and imaging mechanism, Aoralscan 3 carries out more accurate and precise results by 30%, meeting the clinical needs of different applications.


30% Faster
Single arch in 25s
Full arch in 1 min

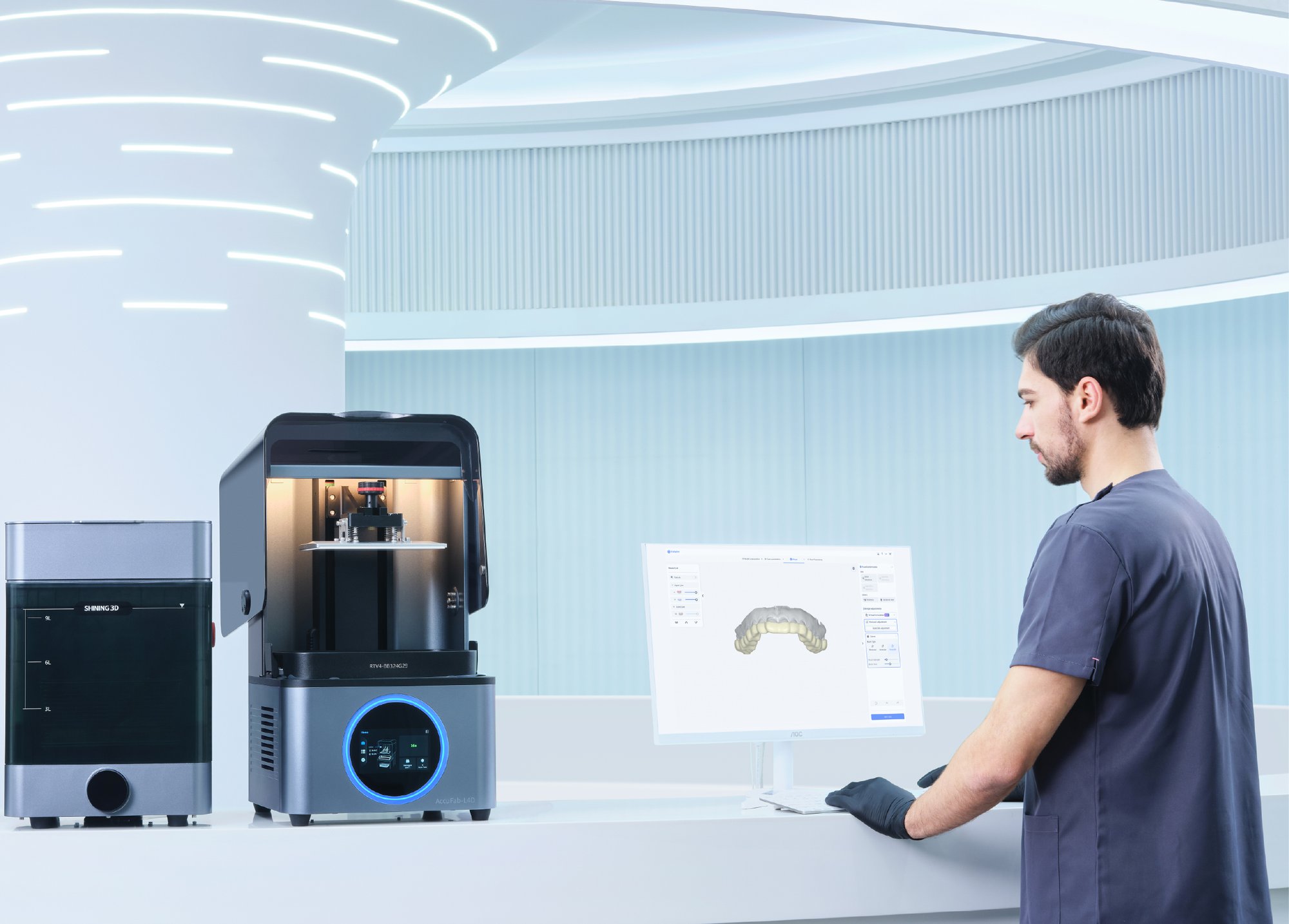

Clinical Toolkit

The clinical toolkit assists dentists to evaluate and pre-design the scanned data in their own clinic.

It facilitates effective communication with dental labs to deliver quality dental work with high efficiency.

  • Undercut Check

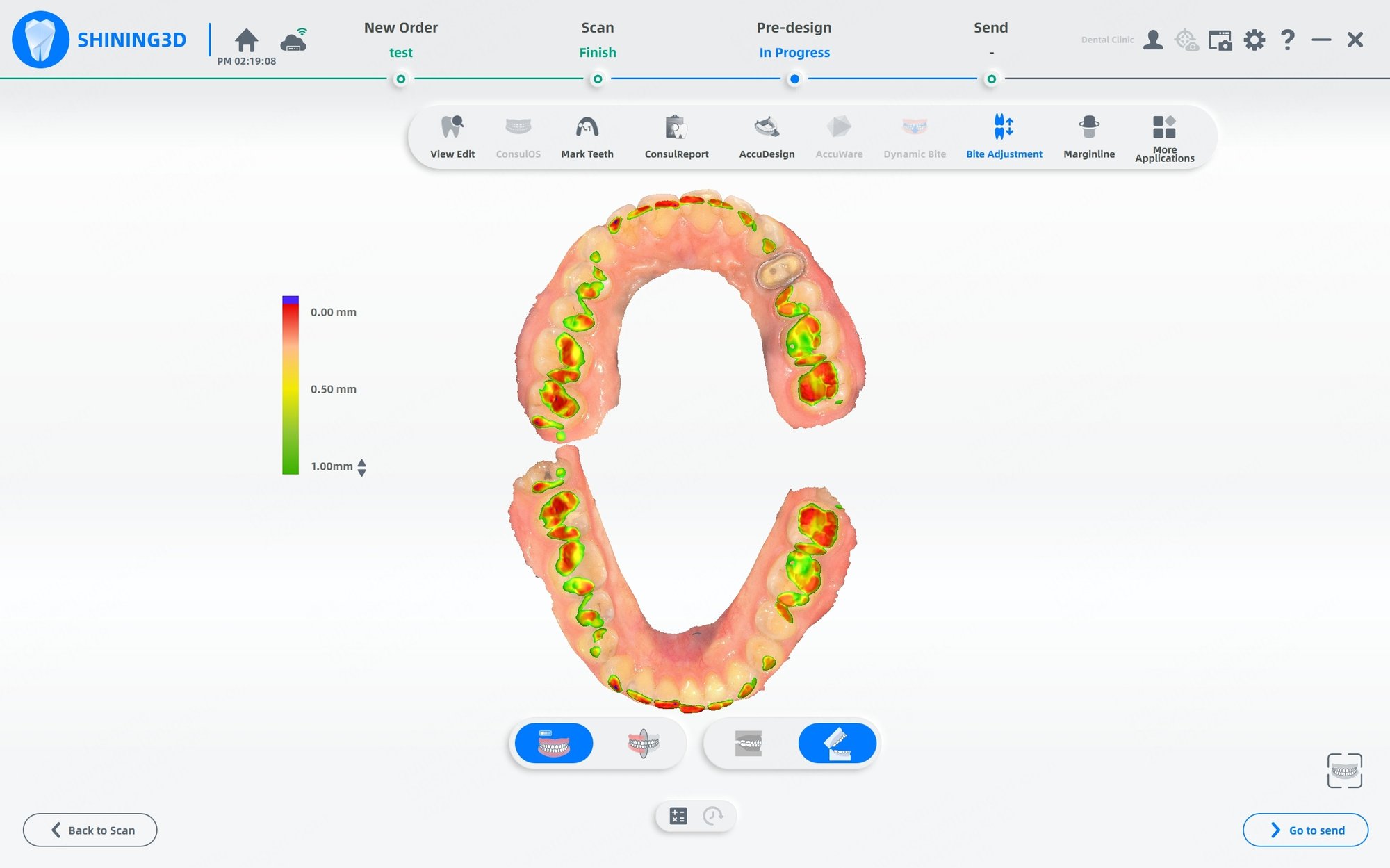

  • Bite Check

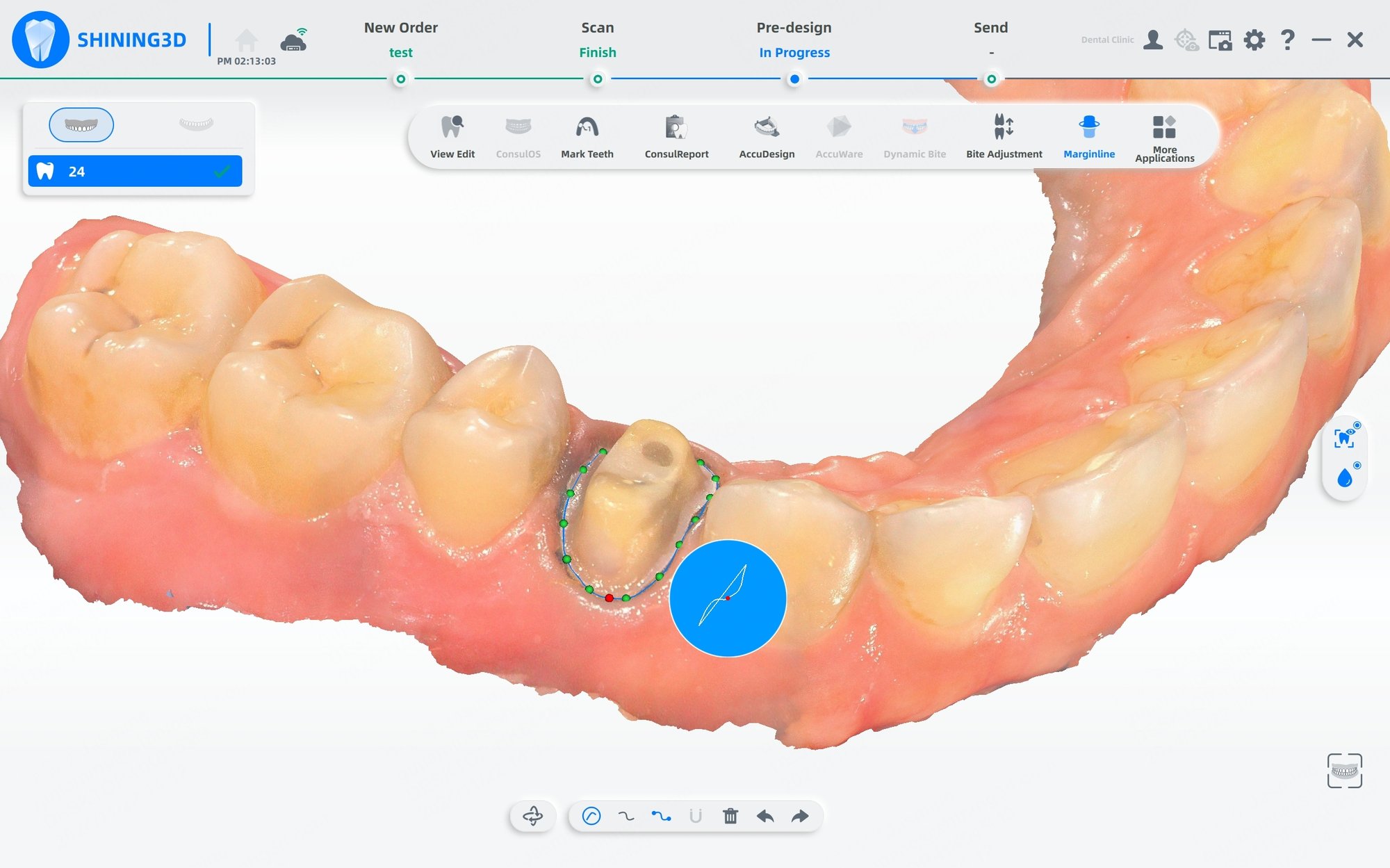

  • Margin Line Auto Extraction

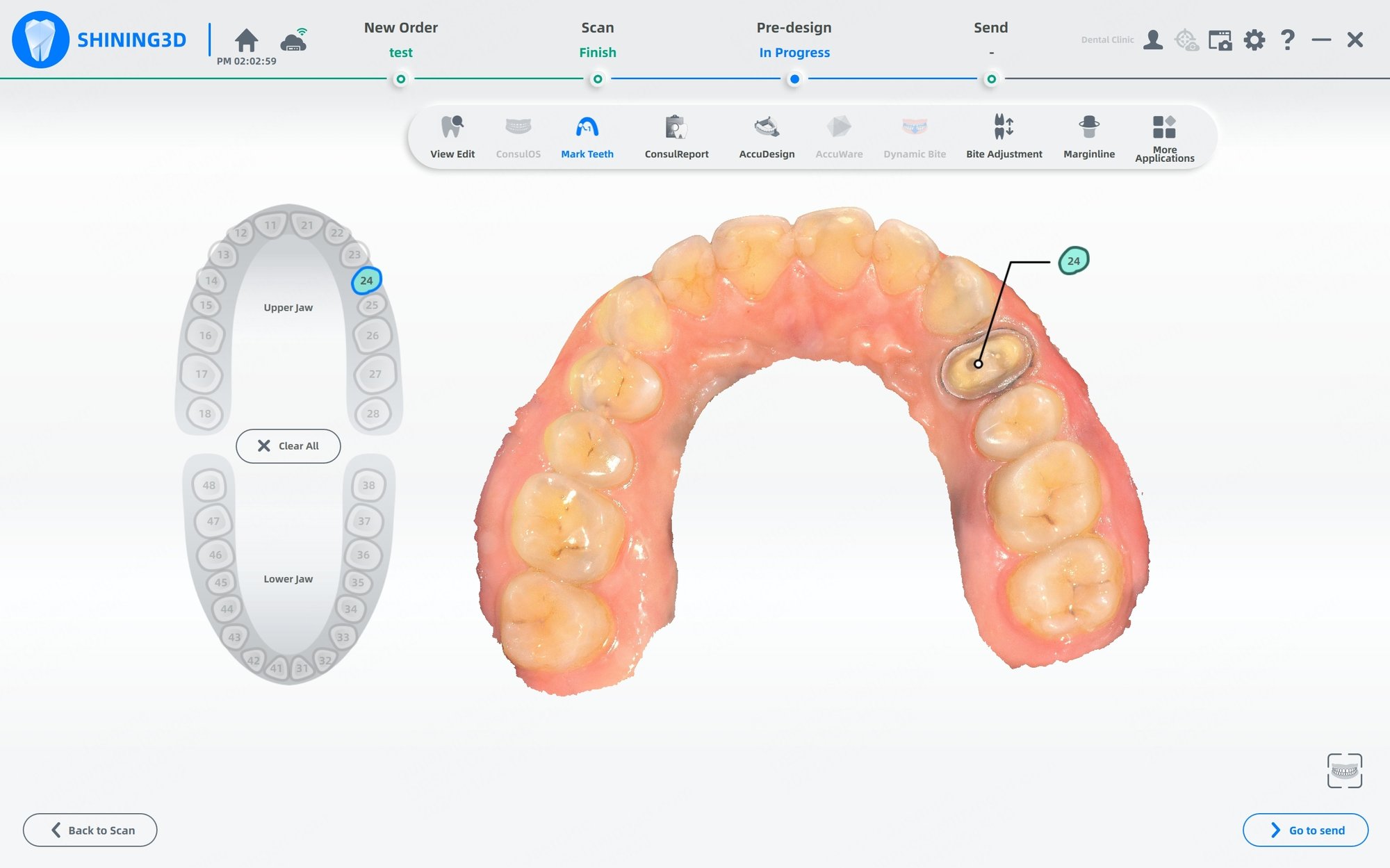

  • Tooth Marking

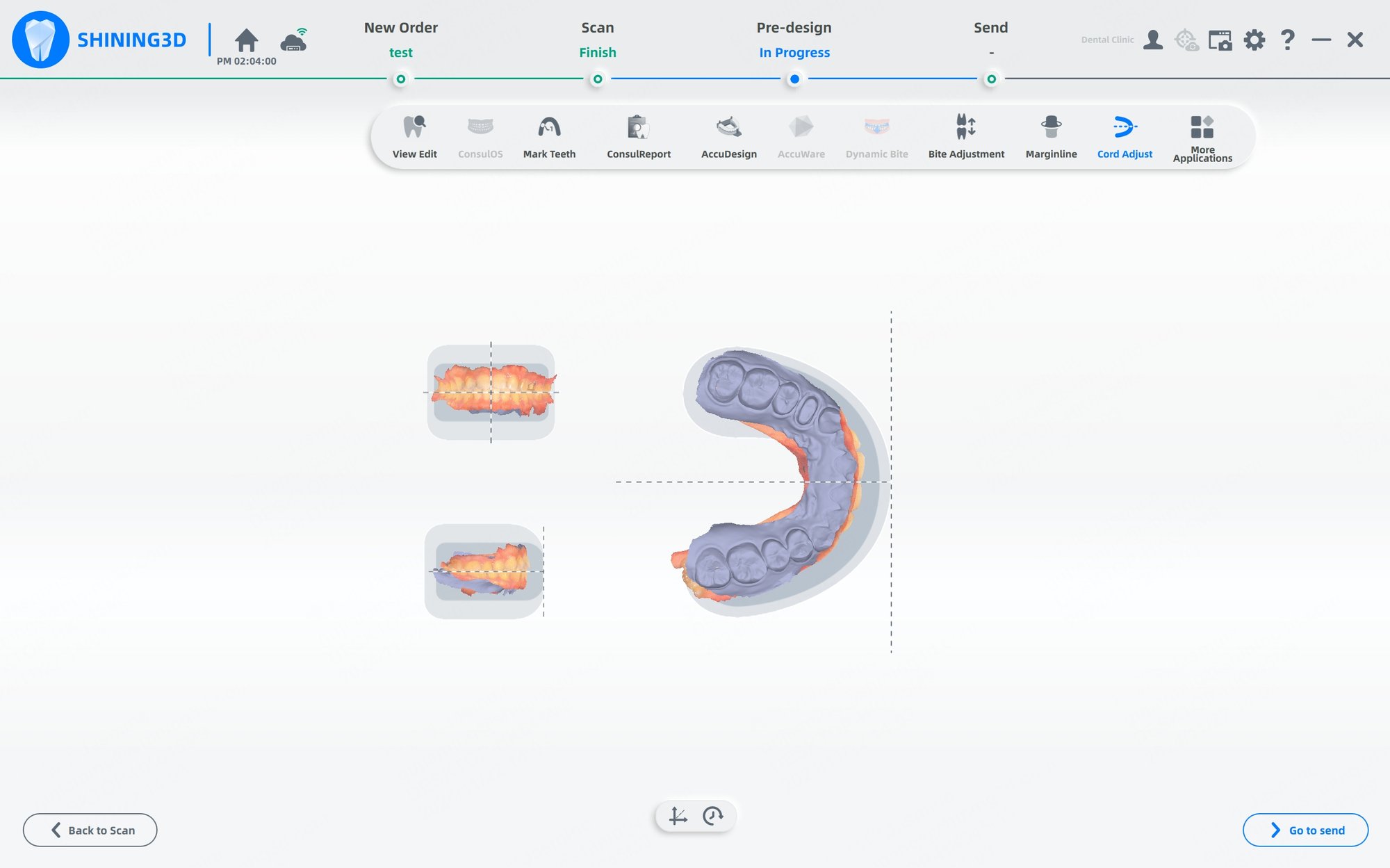

  • Coordinate Adjustment

  • Direct Export into exocad

Cloud Platform

SHINING 3D’s cloud data platform enables data transmission, making it convenient for data transfer and communication between clinics and dental labs.

  • Online 3D Data Preview

  • Order Statistics Analysis

  • Order Tracking System

I’m really impressed by Aoralscan. It not only delivers comfort, but also displays the oral data in great detail and color on the monitor.
Patient, Italy


Revolutionize how dentists interact with their patients
Through vivid 3D simulations, dentists can seamlessly illustrate treatment outcomes, enabling patients to visualize and understand anticipated changes.


Oral Health Report
Oral Health Report, is here to revolutionize dentist-patient communication and oral health management. Designed with user-friendly interaction and a simplified layout, this report enhances the effectiveness of communication between dentists and patients. Featuring multiple measurement tools, it provides comprehensive insights into oral health status.


Whether you need a nightguard or a retainer, CreSplint software provides you with an accurate, custom-fit design via an intuitive and user-friendly interface that requires minimal training.


CreIBT makes the creation of indirect bonding trays easy. With CreIBT, orthodontists can accurately attach brackets to teeth, all while benefiting from the convenience of direct 3D printing.


Temporary crowns can be designed and printed efficiently in the office, reducing patient waiting times and providing high-quality care with minimal effort.


With features like curve of Spee, overbite and overjet,
molar relationship, Bolton ratio, crowding measurement,
and Moyer analysis, these multiple measurement tools
offer a comprehensive overview of the teeth.
The ability to compare various intraoral data enables
dentists to monitor and manage the treatment progress.


AccuDesign enables users to effortlessly create
printable models with a single click, streamlining
operations and boosting efficiency.The improved
support for ABO base significantly enhances its
utility in orthodontic applications.
Moreover, with the inclusion of articulators,
text, and customizable settings, users have the
freedom to craft personalized models.


The Aoralscan 3 intraoral scanner can be applied for clinical indications range spans general restorations, implants and orthodontics. Whether through same-day chairside restorations or clinic-dental lab integrated treatments, it always provides a state-of-the-art user experience.

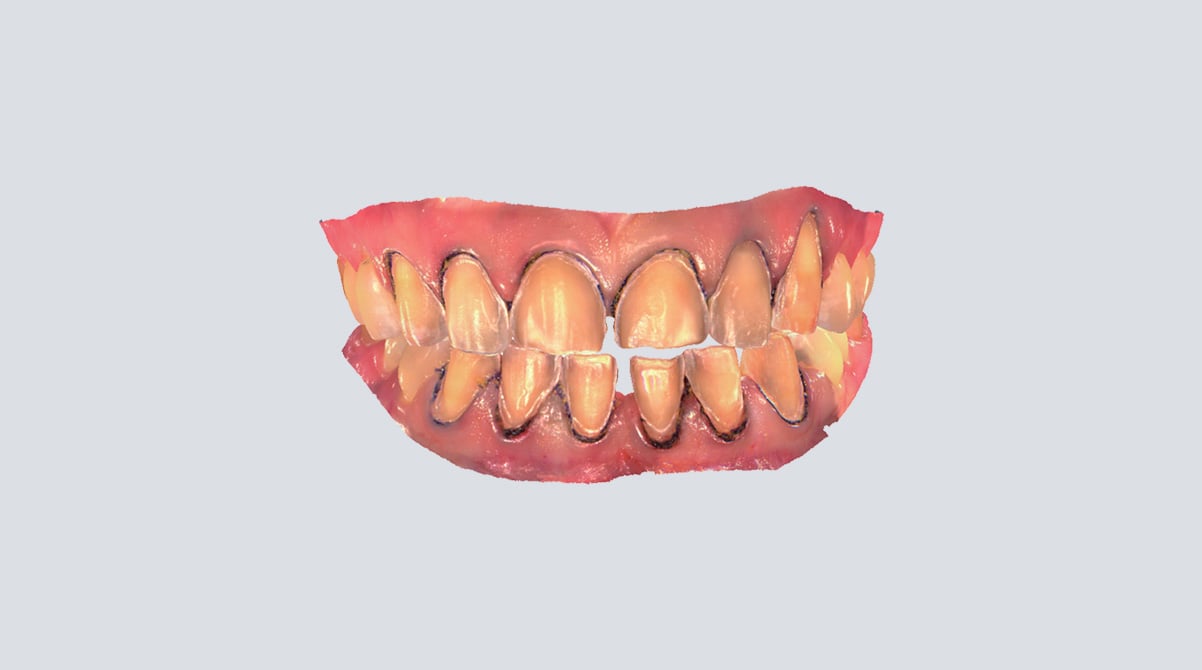

  • Veneer

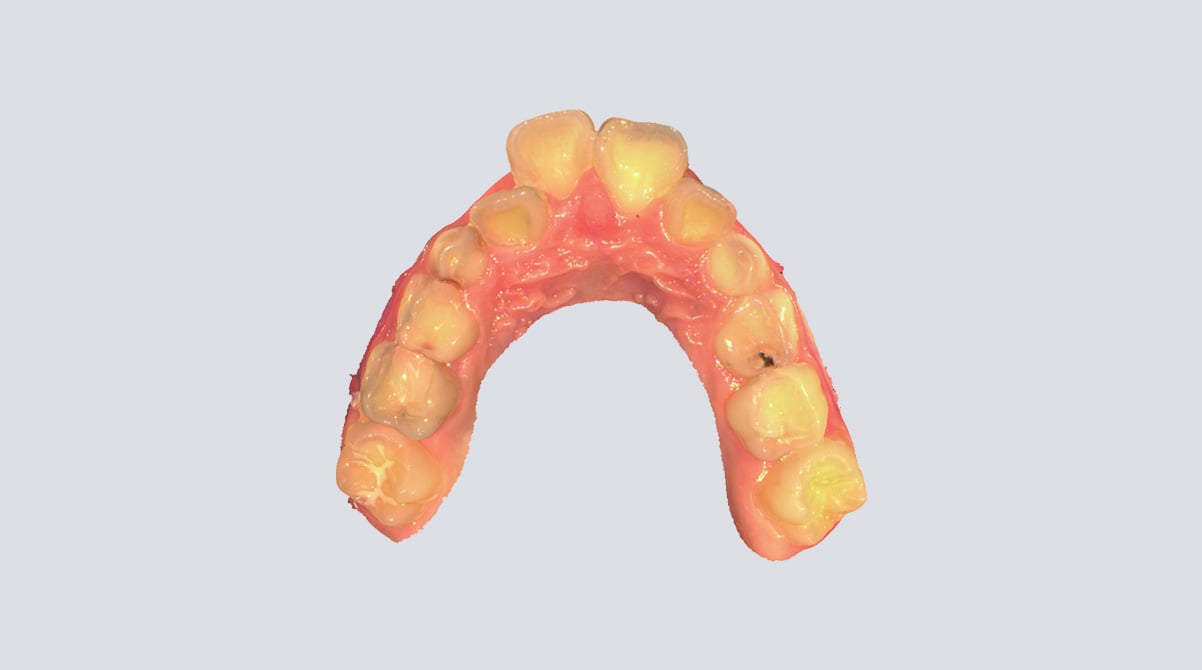

  • Pediatric Dental Care

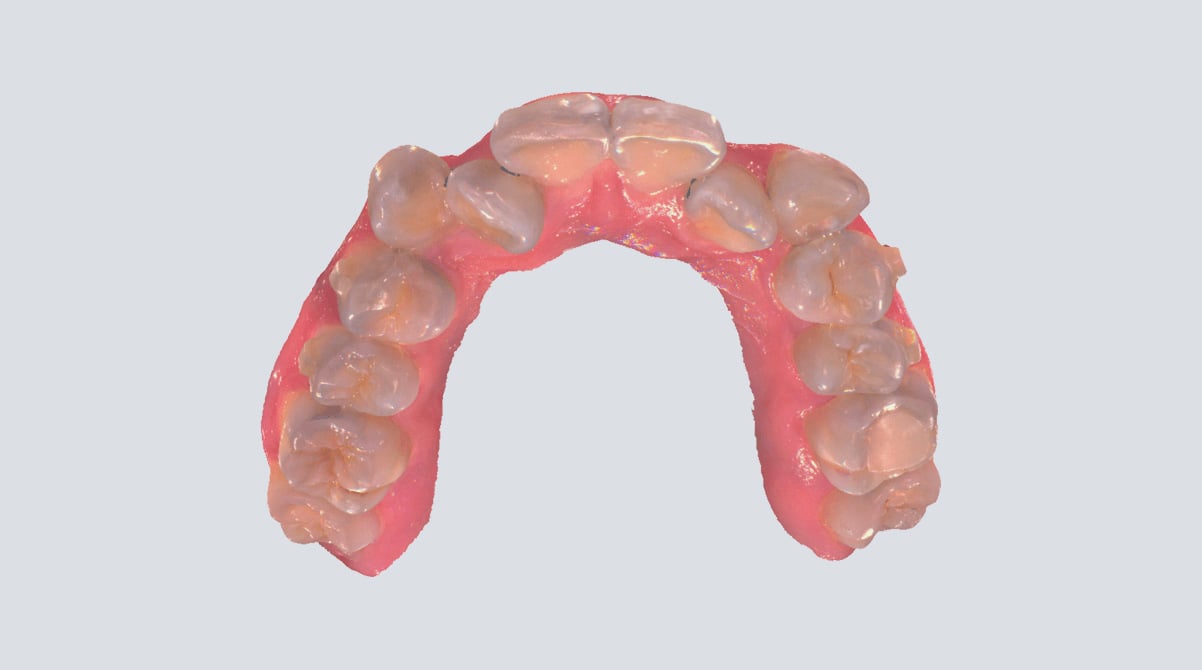

  • Orthodontics

  • Inlay-onlay

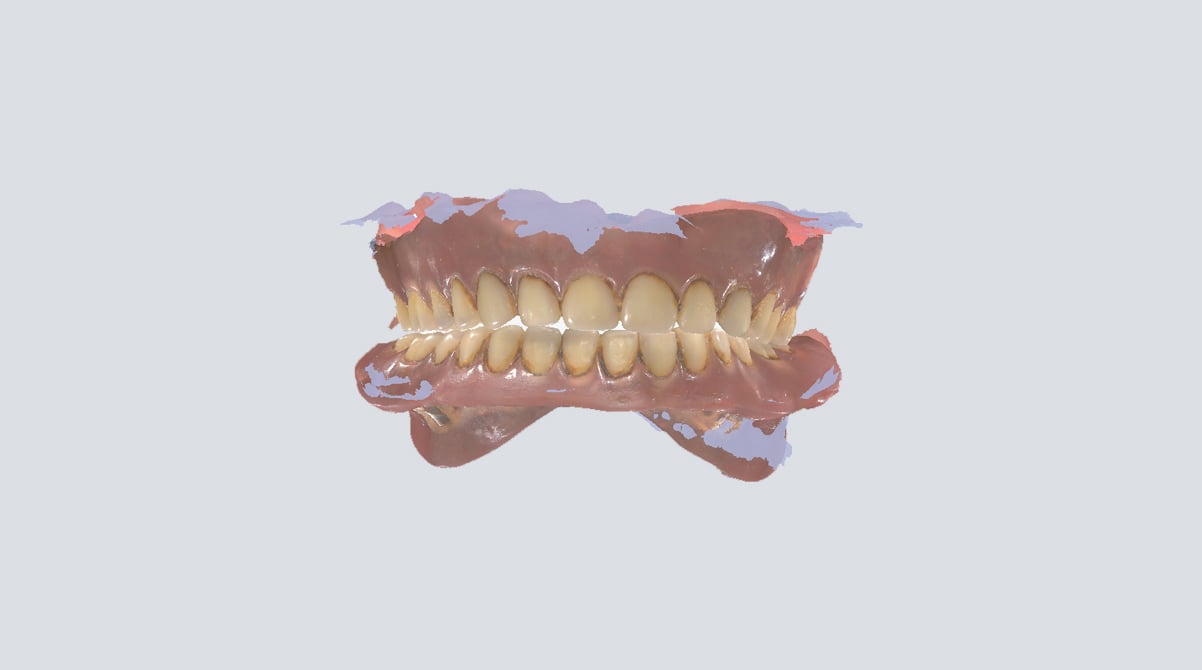

  • RemovableDenture

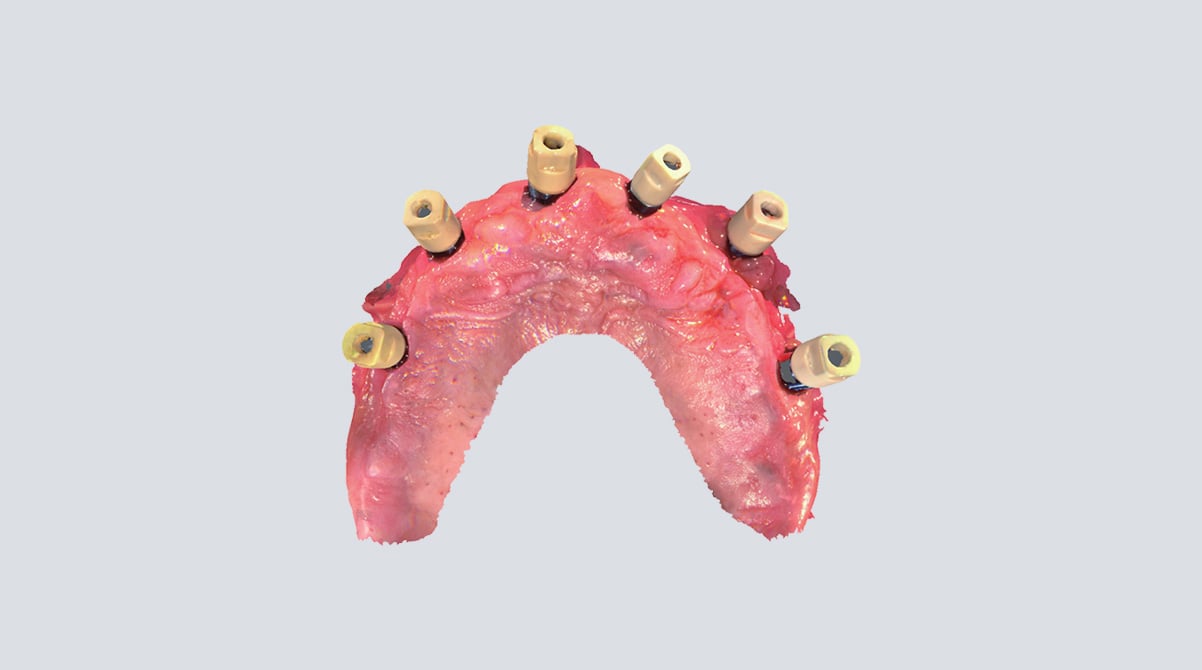

  • All-on-6 Implant

  • 6-Unit Bridge

Customer Testimonials

  • Shining 3D products have been widely

    Dr. Troy Schmedding

  • Shining 3D products have been widely

    Dr. Ahmad A-Hassiny

  • Shining 3D products have been widely

    Dr. Hao

Technical Specifications

Scan Field Standard scanner tip: 16 mm × 12 mm × 22 mm
Mini scanner tip: 12 mm × 9 mm × 22 mm
Scan Depth -2-20 mm from exit surface of tip
Scan Principle Non-contact scanner with structured light
(L × W × H)
281 mm × 33 mm × 46 mm
Weight 240 ± 10 g (without cables)
Output STL, OBJ, PLY
Connector USB 3.0
Power Input 12V DC/3 A

Recommended PC Configuration

CPU Intel Core i7-8700 or higher
RAM 16GB or more
Hard Disk Drive 256 GB SSD or above
Graphic Card
NVIDIA ® RTX 2060 6GB DDR3 or higher
Operating System Windows 10 Professional (64-bit) or later versions of Windows operating systems
Screen Resolution 1920×1080, 60 Hz or higher
I/O Ports More than 2 Type-A USB 3.0 (or higher) ports
