Dental 3D Printing Materials Guide

Dentistry is undergoing digital transformation, from scan to design to print. Intraoral scanners capture patient data. CAD software or SHINING 3D DENTAL CLOUD DESIGN turns that data into a restoration or appliance. Then, 3D printing brings it into physical form.

But the printer is only one part of the result. Dental 3D printing materials also determine fit, strength, aesthetics, and biocompatibility. This guide explains what dentists and labs need to know before choosing 3D printing materials.

What Material is Used for Dental 3D Printing?

Most dental 3D printing materials fall into two groups: resin materials and metal powders.

Resin is the most common choice for chairside and lab printing because it works well for models, guides, trays, splints, dentures, and temporary restorations. Metal powders are used more often in specialized dental labs for frameworks, implant-related parts, and durable restorations.

1. Resin Materials

Resin materials are light-curable polymers. They are exposed to a controlled light source layer by layer until the part is formed. After printing, the part needs washing, drying, post-curing, finishing, and sometimes polishing.

• Temporary crown and bridge resin: Enables rapid fabrication of temporary crowns, bridges, and removable partial dentures with high strength and excellent aesthetics. Examples include SHINING 3D CB11 (available in seven shades), CB12 (for semi-permanent crown, available in four shades), and CX100 (for provisional All-on-X restorations).

• Permanent restoration resin: High-viscosity, ceramic-filled material with lasting mechanical strength. FDA Class II 510(k) cleared for permanent intraoral use, such as SHINING 3D LumiCera ceramic resin, covering the most common natural shades: BL, A1, A2, B1, and C2. It is only applicable to Ceramix-Nano capsule 3D printer.

• Dental model resin: Used for printing implant models, crown/bridge separated models, orthodontic models, etc. It offers high toughness, pressure, and wear resistance, effectively withstanding wear during adjustments. Examples include SHINING 3D DM03 and DM12, which come in gray and yellow resins, respectively, for easy inspection.

• Surgical guide resin: Biocompatible, transparent materials used to print precise drilling guides for placing dental implants. It is a rigid polymer with minimal flex, maintaining a precise fit and shape during surgery, such as SHINING 3D SG01.

• Orthodontic model resin: It’s heat-resistant, hard, and accurate after film pressing, ensuring the reliability of orthodontic aligners and retainers, such as SHINING 3D OD02.

• Occlusal splint resin: Divided into hard and soft occlusal splint resin, featuring High strength, toughness, resistance to aging, and biocompatibility, such as SHINING 3D SH01 hard occlusal splint and SS01 Soft occlusal splint.

• Indirect bonding tray resin: For accurate bracket transfer with enough strength and flexibility for handling. This helps reduce manual bracket positioning errors and chairside time. SHINING 3D IBD is used for printing an indirect bonding tray.

• Custom tray resin: Used for producing custom tray models for try-in crowns, bridges, and custom impressions. SHINING 3D TR01 is for custom trays, which are biocompatible and stable enough for short-term intraoral use.

• Denture base resin: Used for denture bases, retainers, night guards, and custom dental appliances. It’s biocompatible, high-strength, impact resistance, fracture resistance, fatigue resistance, and gum-tone color-matching, such as SHINING 3D DT02.

• Gingiva mask resin: Used to simulate soft tissue around implants and restorations. Its job is to help labs evaluate emergence profiles, soft tissue contours, and aesthetics during fabrication. SHINING 3D GM12 is used for the gingiva mask, resisting tearing without deformation.

2. Metal Powders

Metal powders are usually processed with selective laser melting(SLM). These systems are more common in dental labs than in small chairside clinics. Common metal powders include cobalt-chromium alloy, titanium, and precious metal powders.

• Cobalt-chromium is often used for partial denture frameworks, crown and bridge frameworks, and other strong dental structures. It offers strength and biocompatibility.

• Titanium provides superior biocompatibility alongside an excellent strength-to-weight ratio, representing the core category of 3D printing dental implant materials, used to fabricate custom abutments, subperiosteal frameworks, and definitive fixation components.

• Precious metal powders are less common because of cost, but they may be used in specific high-end lab applications. These materials deliver excellent burnishing performance and biocompatibility.

How to Choose the Right 3D Dental Printing Materials?

The best 3D printing dental materials are those that match the clinical indication, mechanical demand, biocompatibility requirement, printer system, and post-processing protocol.

1. Mechanical Strength

Mechanical strength includes tensile strength, flexural strength, impact resistance, wear resistance, and fatigue resistance. These properties matter most when the printed part must resist chewing, insertion, removal, or repeated handling.

The solution is to match the property to the job. Do not use model resin for a crown. Do not use a tray resin for a splint. Do not use a temporary crown resin as a permanent restoration.

2. Accuracy and Dimensional Stability

Accuracy means the printed part matches the design file. Dimensional stability means it keeps that shape after printing and handling. This is critical for models, surgical guides, trays, splints, and crowns. A small distortion can cause poor seating, pressure points, incorrect bracket transfer, or guide misfit.

For dental resin for 3D printing, dimensional stability depends on resin formulation, printer calibration, layer thickness, print orientation, cleaning, curing, and storage.

3. Water Absorption Rate

Water absorption is important because the oral environment is wet. High water absorption may affect color, strength, and dimensional stability over time.

For temporary crowns, semi-permanent crowns, splints, etc., low water absorption helps reduce aging, deformation, fracture risk, and color change.

4. Biocompatibility

Any material placed in the oral cavity must not release cytotoxic chemicals or cause tissue irritation. It is essential to choose resins that are explicitly certified as Class I or Class II biocompatible by regulatory bodies like the FDA. Formulations free from harmful compounds like TPO, MMA, and THF-MA ensure patient safety, particularly for individuals with chemical sensitivities.

5. Aesthetics

Aesthetic requirements include color, color stability, translucency, surface smoothness, and polishability. Especially for 3D printed crown dental material, the shade range matters. More shades help practices and labs choose a more suitable provisional shade.

6. Heat Resistance

Heat resistance matters for orthodontic model resins because aligner film pressing exposes models to heat. This ensures that the clear aligner accurately replicates the planned tooth movements without loss of detail.

Which Type of Dental 3D Printing Material is Best?

It depends on your needs. Questions to ask about the clinical application:

Is the part a model, guide, crown, tray, splint, denture, gingiva mask, or metal framework? Will it touch the patient’s mouth? If yes, for how long? Will it carry a load? Will it need shade matching? Will it be exposed to heat? Will it be sterilized or disinfected?

Then ask about workflow.

Is the material validated for your printer? Does it require a specific curing profile? Does your team have the right washing and curing equipment? Can your lab maintain storage conditions?

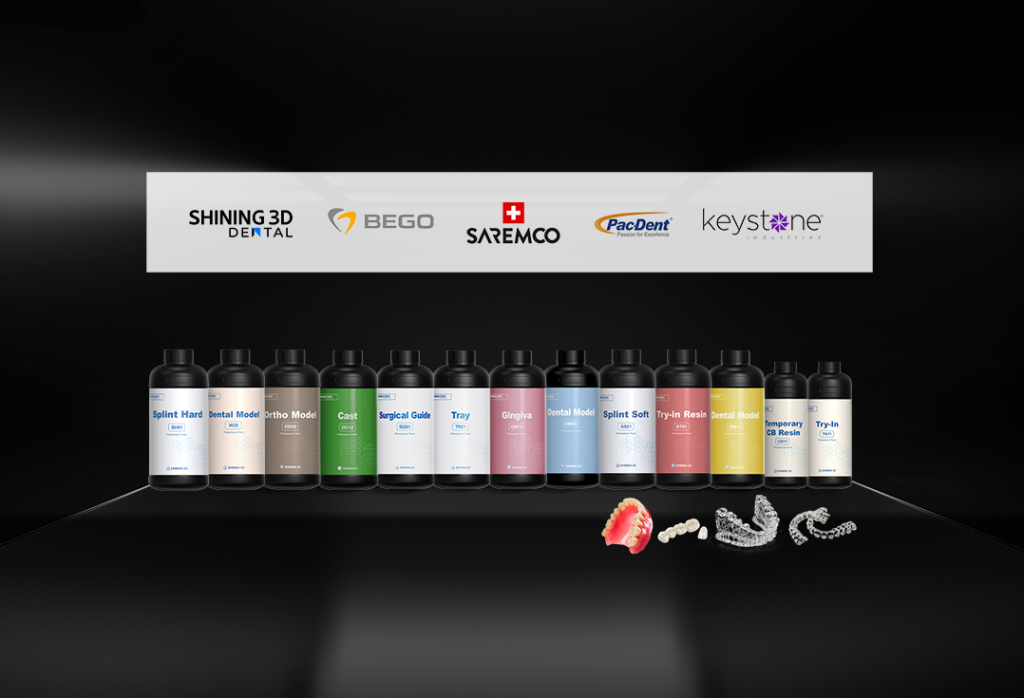

About SHINING 3D DENTAL Printing Materials

If you are searching for reliable dental 3D printing materials, SHINING 3D DENTAL provides a complete material ecosystem designed for digital workflows, covering:

• LumiCera (Permanent Restorations): The ceramic resin inside the Ceramix-Nano capsule, pre-measured and ready to print. FDA Class II 510(k) cleared for permanent intraoral use.

• CB11 & CX100 (Provisional Restorations): Certified biocompatibility compliant, providing consistent fracture resistance and a wide range of natural shades.

• CB12 (Semi-Permanent Restorations): High-strength resin. This specialized 3D printed crown dental material features a low water absorption rate that prevents structural degradation during long-term clinical use.

• lOD02 (Orthodontic Models): Engineered for high thermal resistance, maintaining dimensional accuracy after exposed to the high temperatures and pressures of aligner production.

• SG01 (Surgical Guides): A highly transparent, rigid polymer that allows clear clinical visualization during implant placement, maintaining structural shape without warping under pressure.

• GM12 (Gingiva Masks): Delivers exceptional toughness and tear resistance, simulating natural gingiva.

Moreover, there are DT02 for denture bases, SH01 and SS01 for hard and soft occlusal splints, IBD for indirect bonding trays, DM03 and DM12 for dental and implant models, and TR01 for custom trays. These meet most of your chairside needs.

Contact SHINING 3D DENTAL for more information.

FAQs

1. How should printing resin materials be stored?

Printing resin should be stored sealed, away from light, and at a stable, low temperature. The pain point is material degradation. Poor storage may reduce print success, change viscosity, increase brittleness, or affect final strength.

2. How long can resin last before expiring?

Shelf life depends on the brand and formulation. SHINING 3D DENTAL resins offer a 2-year shelf life. When buying dental 3D printing materials, check the expiration date, storage requirements, and your expected monthly usage.

3. Can resin replace zirconia?

3D printing resins can be useful for temporary crowns, provisional bridges, selected semi-permanent crowns, and fast chairside workflows. It offers speed, low material waste, and easy digital customization.

But zirconia is still preferred for many long-term load-bearing restorations because of its strength, wear resistance, and clinical track record.
